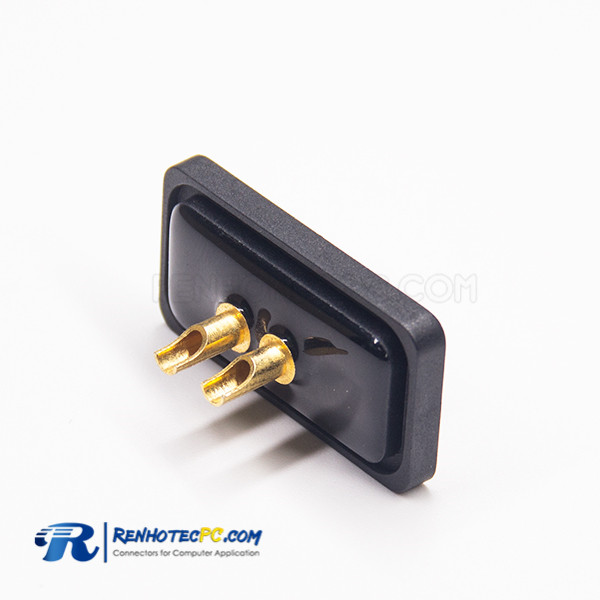

Waterproof d sub 2V2 Female Contact solder type Connectors

Part NO.:RHT-681-1266

Tags:IP67 Waterproof,D sub Combo,Female,Solder Cup,Gold plated 3U'',straight,Machined Pin,2V2,Cable

Features:

  • Interfacial seal to ensure function even when immersed
  • Better against mechanical impacts during installation
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Contact resistance 10 mOhm
Current rating signal 7,5 A
Dielectric with standing voltage signal 1000 V
Working voltage signal 125 V
Working Voltage 1000V
Extraction force 30N
Insertion force  30N
Operating Temperature -25°C~ +125°C
