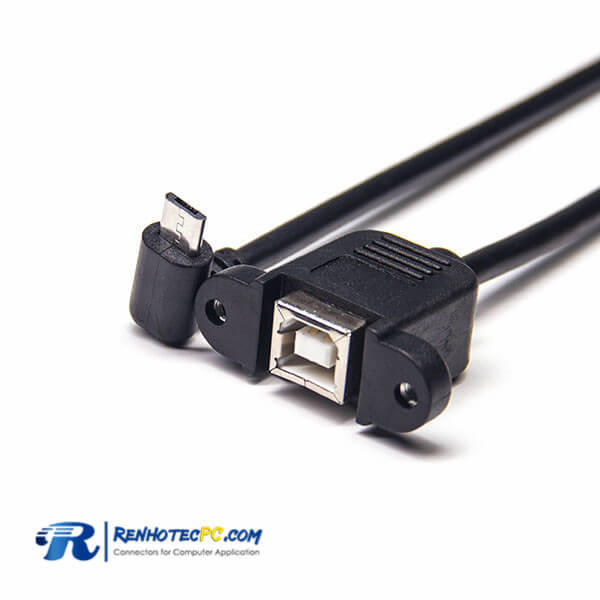

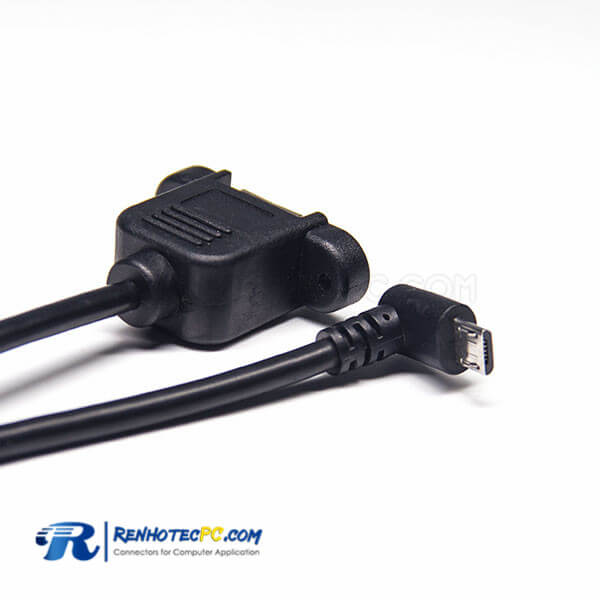

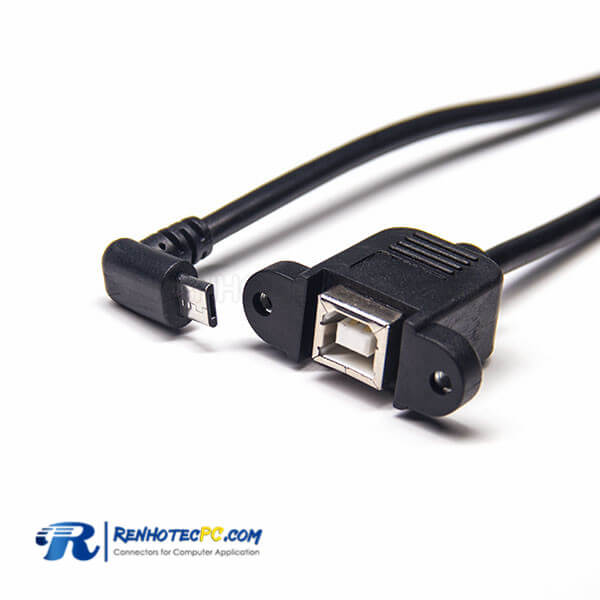

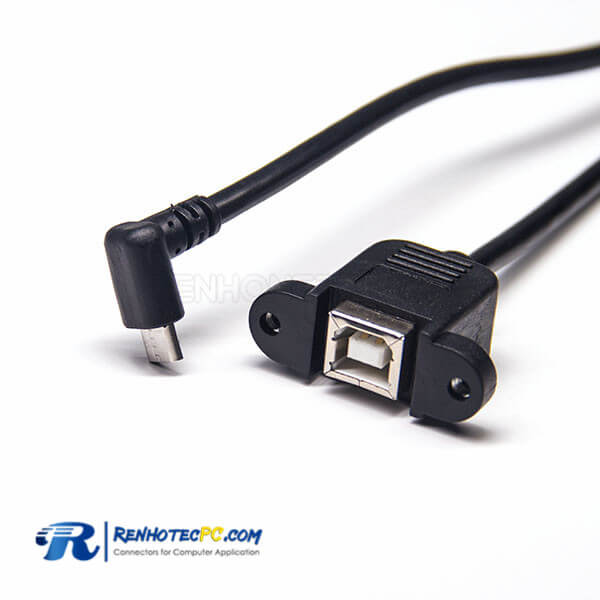

USB Type B Cable OTG Female Straight to Micro USB Male Down Angle

USB Type B Cable OTG Female Straight to Micro USB Male Down Angle
USB Type B Cable OTG Female Straight to Micro USB Male Down Angle USB Type B Cable OTG Female Straight to Micro USB Male Down Angle USB Type B Cable OTG Female Straight to Micro USB Male Down Angle USB Type B Cable OTG Female Straight to Micro USB Male Down Angle

Part NO.:RHT-606-0147
Tags:USB 2.0 Cable,Micro USB,Down Angle,Male,USB B,Female,Straight

Features:

  • Fast charging cable and data transfer line
  • 3A fast charging Android/iphone device data line
  • Cable length 1m(can be customized),pure copper wire core,PVC jacket,OD 3.5mm,Die-casting,support 3A current
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
