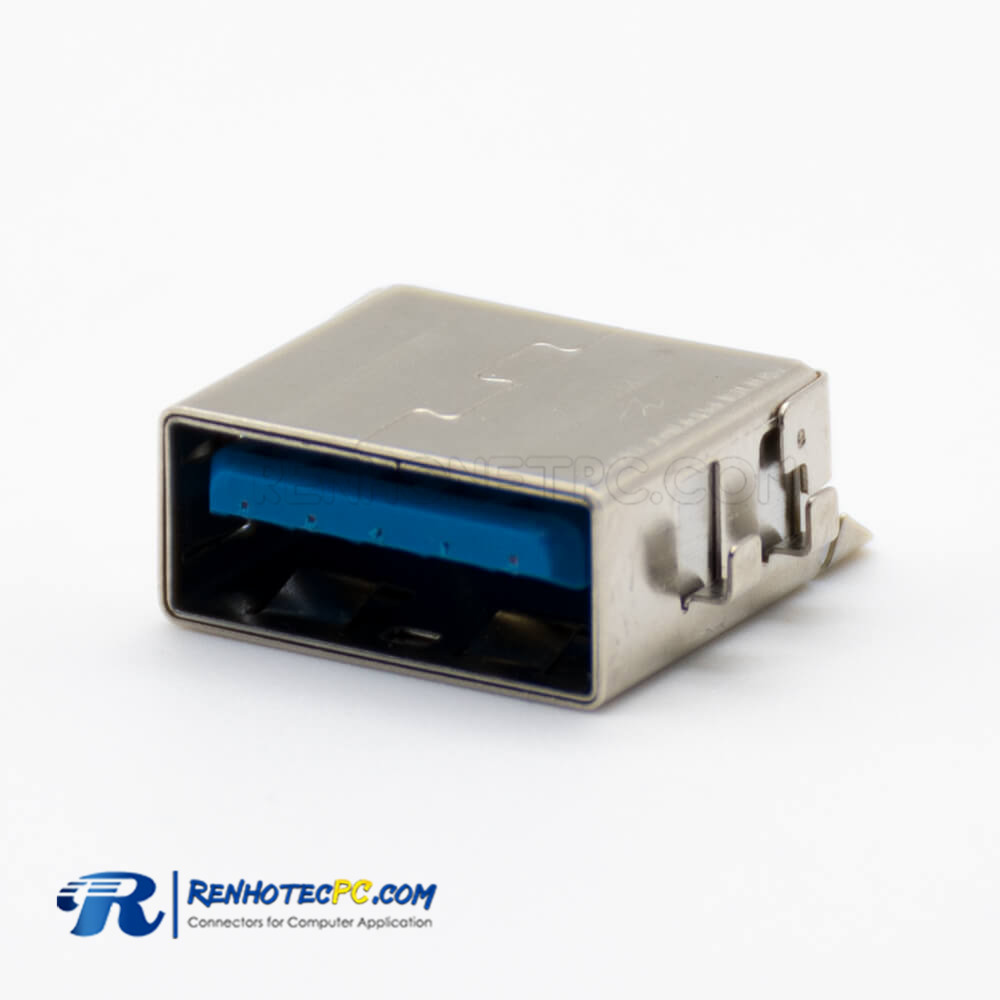

USB Connector 3.0 Offset Type A 9 Pin Female Straight

USB Connector 3.0 Offset Type A 9 Pin Female Straight
USB Connector 3.0 Offset Type A 9 Pin Female Straight USB Connector 3.0 Offset Type A 9 Pin Female Straight USB Connector 3.0 Offset Type A 9 Pin Female Straight USB Connector 3.0 Offset Type A 9 Pin Female Straight

Part NO.: RHT-692-2017
Tags: Ttpe-A,USB3.0,Female,Straight,9 Pin,Offset Type,Solder Type,IP67

Features:

  • Meets USB 3.0 specification
  • Capable of transferring data up to 5Gb/s
  • Full metal shielding
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A FREE Quote

Major Technical Characteristics
Contact Resistance 30Ω Maximum
 Contact Current Rating 1.50A
 Dielectric Withstanding Voltage 100V R.M.S
 Insulation Resistance 1000 Megohms Min
 Mating Force 3.57kg Max
 Unmating Force 1.02kg Min
Operating Temperature -45°C~ + 85°C
