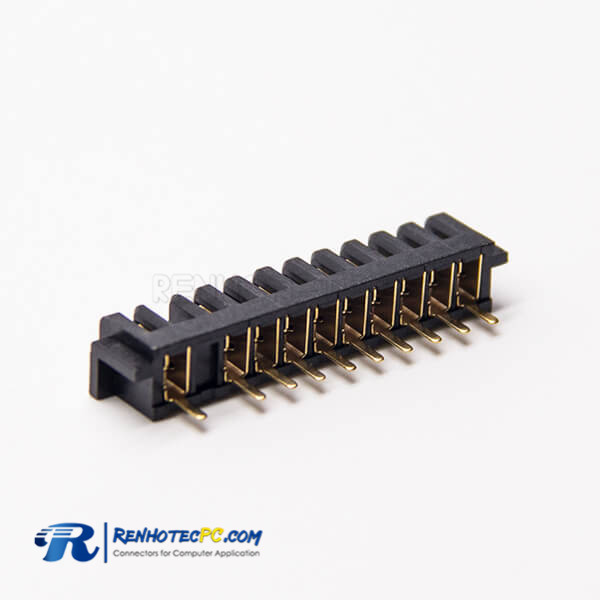

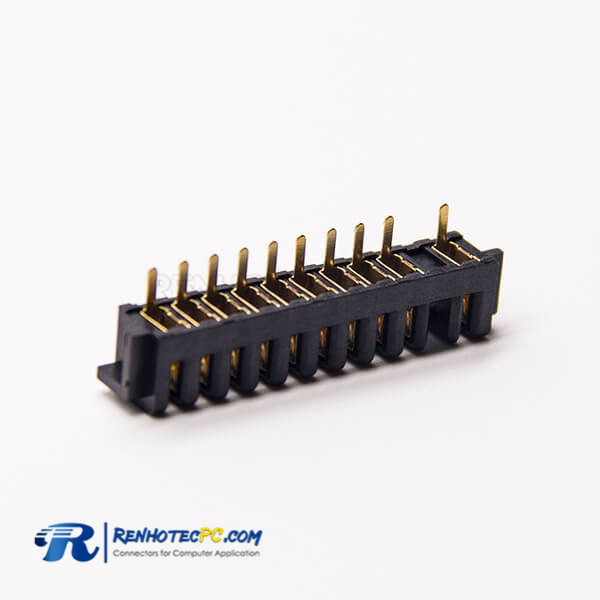

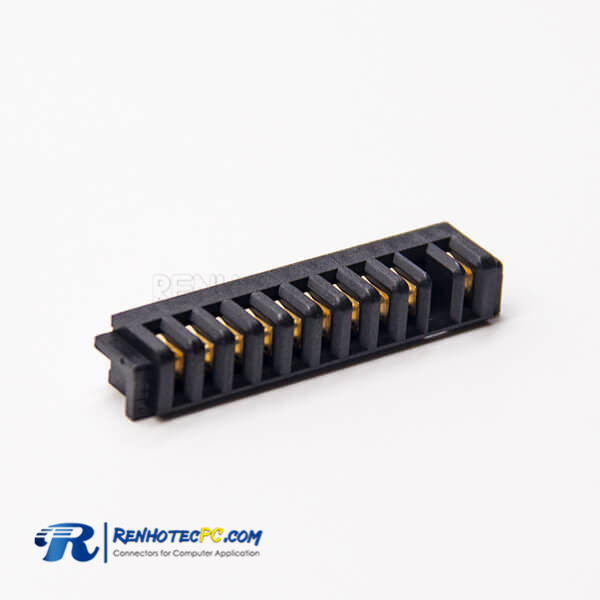

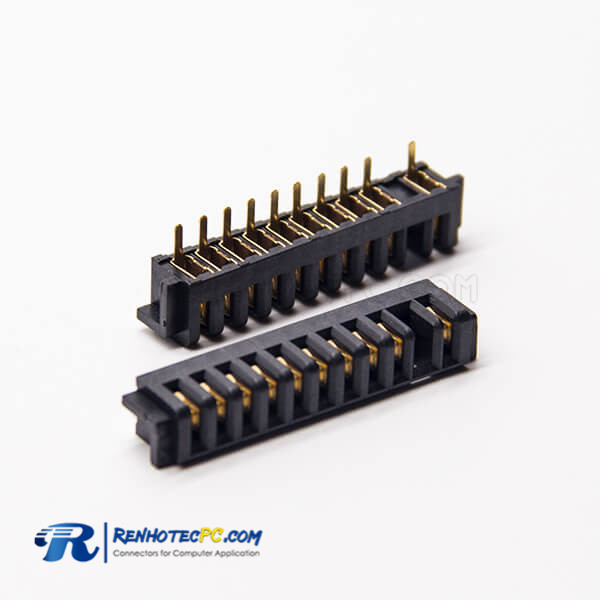

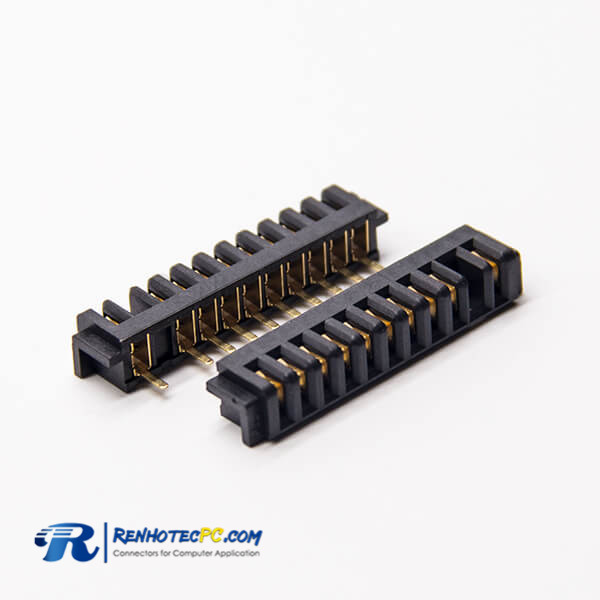

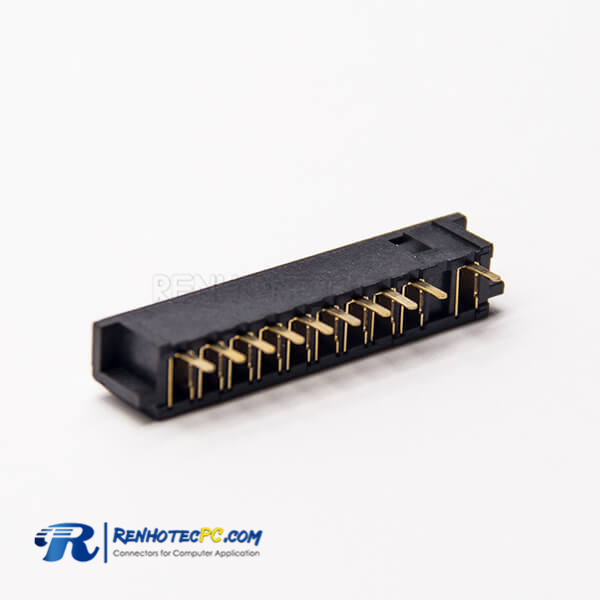

10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector

10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector
10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector 10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector 10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector 10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector 10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector 10 Pin Female Connector PH2.5 10 Pin 180 Degree Fool-Proof Notebook Battery Connector

Part NO.:RHT-648-1029
Tags: Laptop Battery Connector ,Socket,10pin,Female,Straight,PCB Mout,PH2.5,Golden

Features:

  • Headers available for 7.2, 10.8, and 12.0 volt rechargeable batteries
  • Receptacle connectors with solder tails or weld tabs
  • Consumer-friendly mating/unmating of battery
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get a FREE Quote

Major Technical Characteristics
Rated current 7A
Rated voltage 30VDC
Mechanical characteristics PCB mounting fixed (without accessories)
Installation angle right angle
Connector Mounting Type Board Mount
Ambient temperature ≥ -30°C ~ + 70°C
Material UL 94V-0 rated thermoplastic
