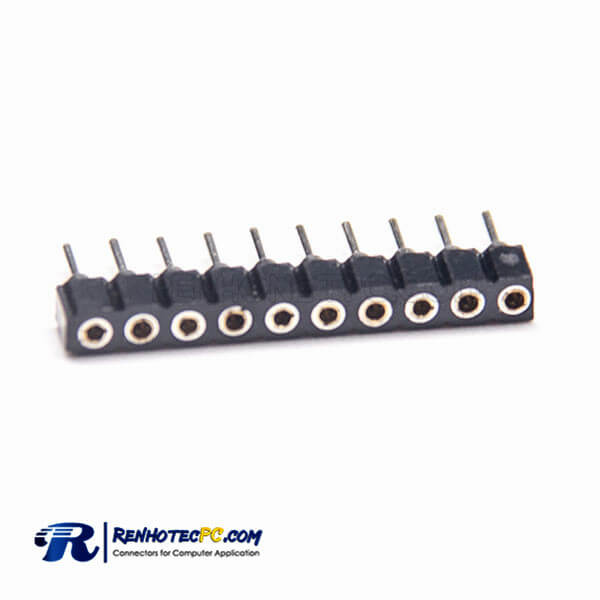

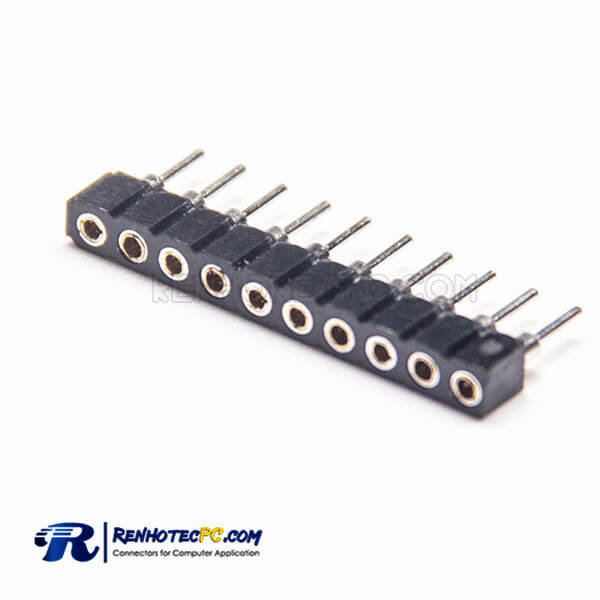

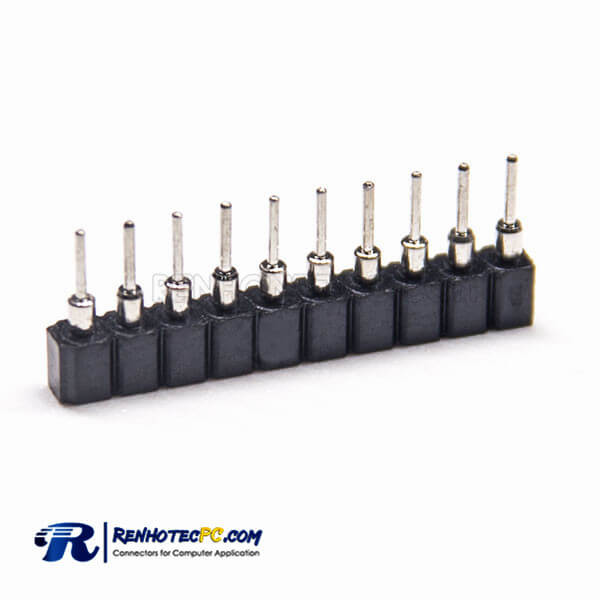

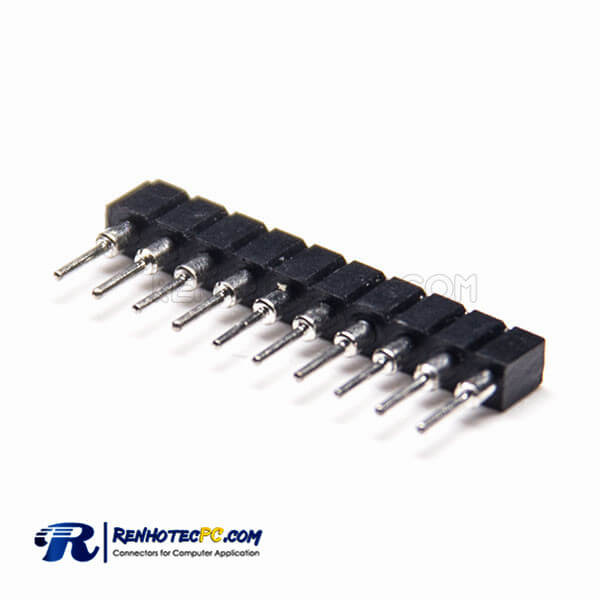

2pcs Female Pin Header Straight 2.0mm Circular Holes Single Row DIP Type

Female 2pcs Pin Header Straight 2.0mm Circular Holes Single Row DIP Type
Female 2pcs Pin Header Straight 2.0mm Circular Holes Single Row DIP Type Female 2pcs Pin Header Straight 2.0mm Circular Holes Single Row DIP Type Female 2pcs Pin Header Straight 2.0mm Circular Holes Single Row DIP Type Female 2pcs Pin Header Straight 2.0mm Circular Holes Single Row DIP Type

Part NO.:RHT-604-2041
Tags:Female Header Connector,Female/Jack,Straight/180°,10pin,2.0mm,Single Row,DIP,Solder Type,Tin Plating，Black,H2.8mm,Circular

Features:

  • Pin headers connector mated with female header connectors called Board to board connector connection.
  • Pin headers mated with cable connectors called Wire to board connection such when it function as recipients for jumper wire.
  • Easy quick connect and disconnect coupling;
  • Very cost-effective due to their simplicity;
  • Consists of one or more rows of male pins typically spaced 2.54mm/5.08mm/5.00mm/3.96mm/2.00mm/1.27mm/1.00mm;
  • Mounting type include SMT and DIP;
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote
Major Technical Materials
Contact materials Brass
Phosphor Bronze other Beryllium or Copper Alloy
Plating materials Gold (Au) plated (surface flashing)
Tin-plated (main plating materials)
Nickel(Ni) plated (underplating)
Major Technical Performances
Current Rating 1.5 Amp
Insulation Resistance 1000M ohms min
Contact Resistance 20M ohms max
Dielectric Withstanding  AC500V
Durability (Gold finish) 300 mating cycles
Operating Temperature  -40°C to +105°C
Durability (Gold finish) 50 mating cycles
LCP Suitable For IR Reflow, Wave, Manual solder
Major Technical Application
Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields.
