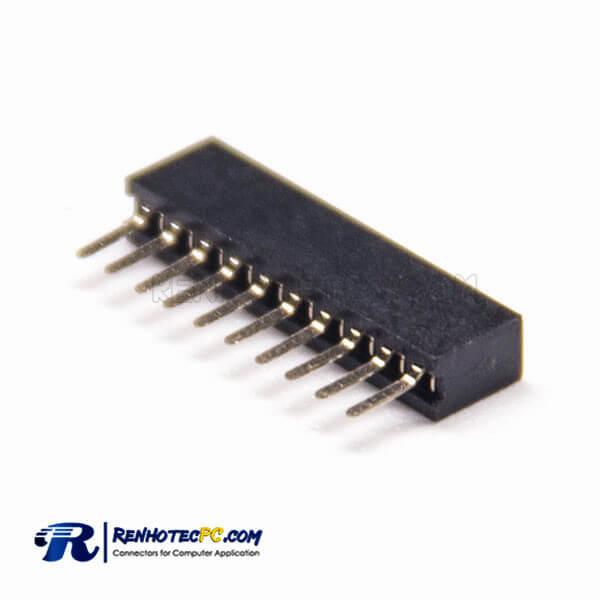

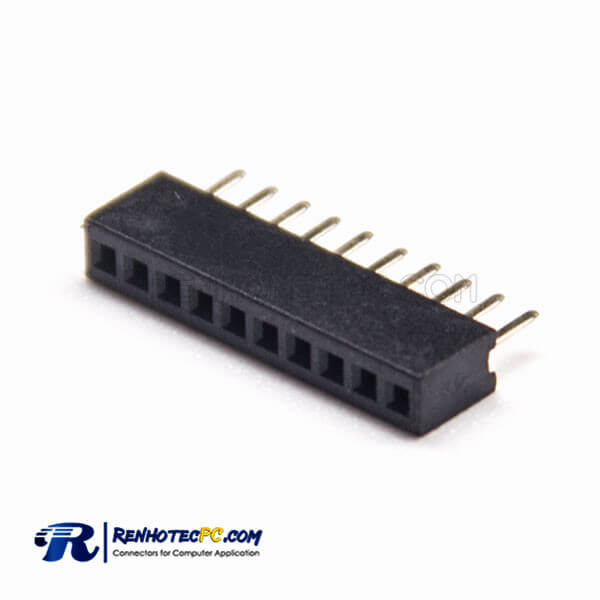

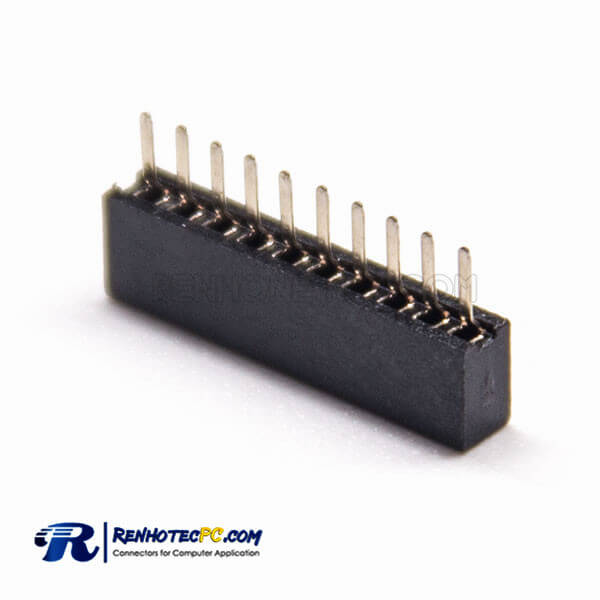

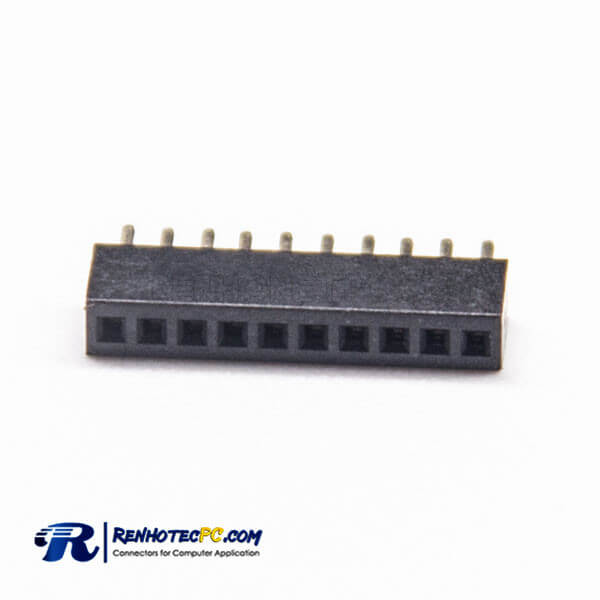

3pcs Single Row Female Pin Header 180 Degree 1.27mm Picth Through Hole

3pcs Single Row Female Pin HeaderThrough Hole 180 Degree 1.27mm Picth
3pcs Single Row Female Pin HeaderThrough Hole 180 Degree 1.27mm Picth 3pcs Single Row Female Pin HeaderThrough Hole 180 Degree 1.27mm Picth 3pcs Single Row Female Pin HeaderThrough Hole 180 Degree 1.27mm Picth 3pcs Single Row Female Pin HeaderThrough Hole 180 Degree 1.27mm Picth

Part NO.:RHT-603-3044
Tags:Female Header Connector,Female/Jack,Straight/180°,8pin,1.27mm,Single Row,DIP,Solder Type,Gold Plating，Black,H3.4mm,Square

Features:

  • Pin headers connector mated with female header connectors called Board to board connector connection.
  • Pin headers mated with cable connectors called Wire to board connection such when it function as recipients for jumper wire.
  • Easy quick connect and disconnect coupling;
  • Very cost-effective due to their simplicity;
  • Consists of one or more rows of male pins typically spaced 2.54mm/5.08mm/5.00mm/3.96mm/2.00mm/1.27mm/1.00mm;
  • Mounting type include SMT and DIP;
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote
Major Technical Materials
Contact materials Brass
Phosphor Bronze other Beryllium or Copper Alloy
Plating materials Gold (Au) plated (surface flashing)
Tin-plated (main plating materials)
Nickel(Ni) plated (underplating)
Major Technical Performances
Current Rating 1.5 Amp
Insulation Resistance 1000M ohms min
Contact Resistance 20M ohms max
Dielectric Withstanding  AC500V
Durability (Gold finish) 300 mating cycles
Operating Temperature 300 mating cycles
Durability (Gold finish) -40°C to +105°C
LCP Suitable For IR Reflow, Wave, Manual solder
Major Technical Application
Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields.
