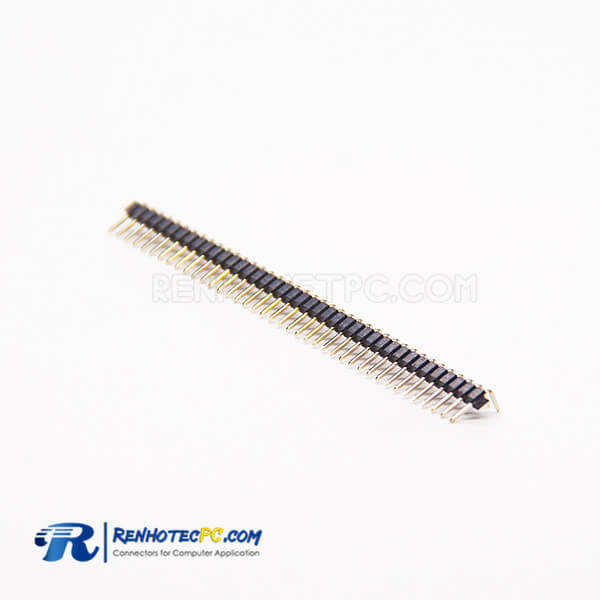

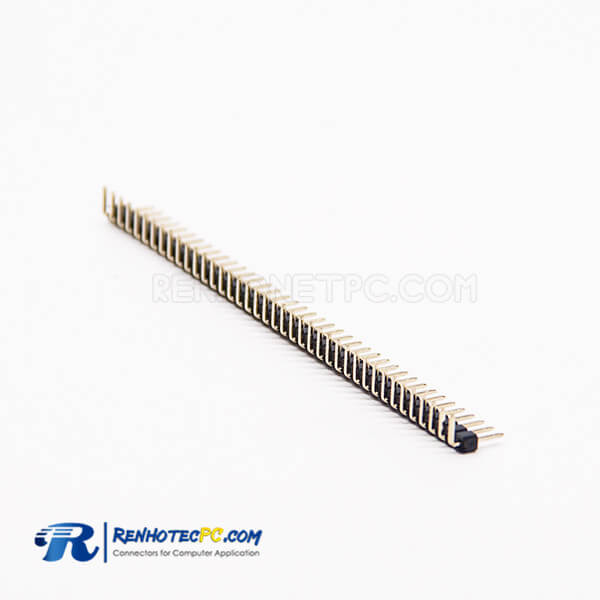

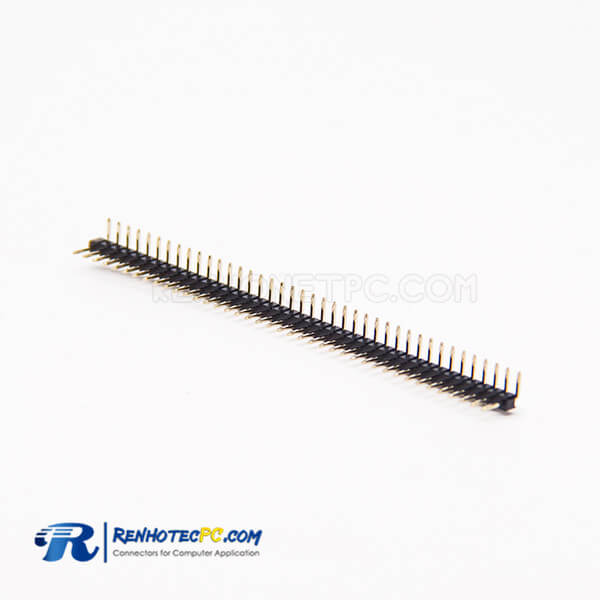

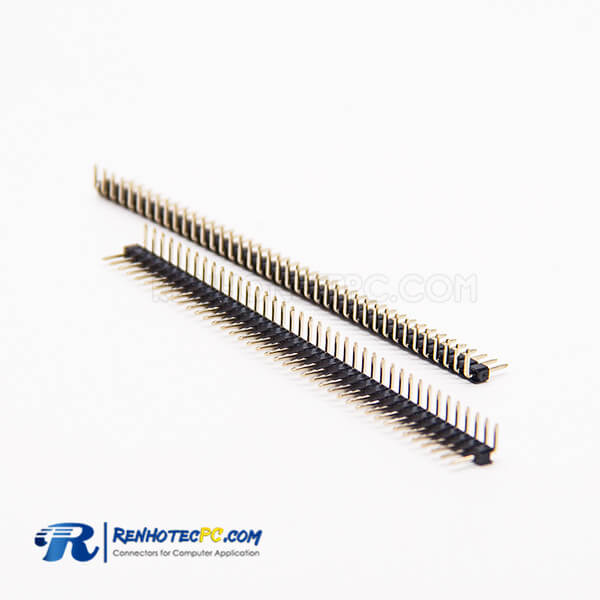

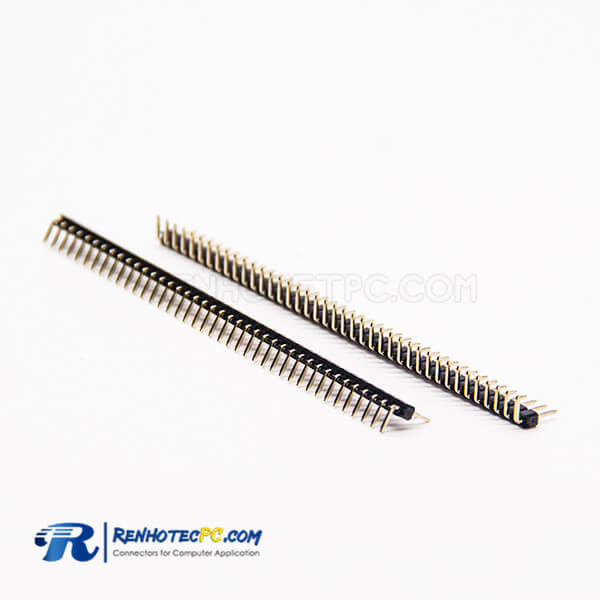

Pin Header Connector 180 Degree Male 0.8×1.38PH 2×30PIN Dual Row SMT
Part NO.:RHT-603-3013
Tags:Pin Header Connector,Male/Plug,Right Angled/90°,Single Row,2.0mm,40PIN,Through Hole
Features:
- Pin headers connector mated with female header connectors called Board to board connector connection.
- Pin headers mated with cable connectors called Wire to board connection such when it function as recipients for jumper wire.
- Easy quick connect and disconnect coupling;
- Very cost-effective due to their simplicity;
- Consists of one or more rows of male pins typically spaced 2.54mm/5.08mm/5.00mm/3.96mm/2.00mm/1.27mm/1.00mm;
- Mounting type include SMT and DIP;
- Free sample available for quality test
- Can be Customized for unique material or performance requirement
Specification
| Major Technical Materials | |
| Contact materials | Brass |
| Phosphor Bronze other | Beryllium or Copper Alloy |
| Plating materials | Gold (Au) plated (surface flashing) |
| Tin-plated (main plating materials) | |
| Nickel(Ni) plated (underplating) | |
| Major Technical Performances | |
| Current Rating | 1.5 Amp |
| Insulation Resistance | 1000M ohms min |
| Contact Resistance | 20M ohms max |
| Dielectric Withstanding | AC500V |
| Durability (Gold finish) | 300 mating cycles |
| Operating Temperature | 300 mating cycles |
| Durability (Gold finish) | -40°C to +105°C |
| LCP Suitable For | IR Reflow, Wave, Manual solder |
| Major Technical Application | |
| Electronic device | |
| Home appliances | |
| Electrical instruments | |
| Automotive: Car navigation LCD panel and so on | |
| Lighting industry | |
| The above applications are typical but not limited, these products are widely use in many fields. |
