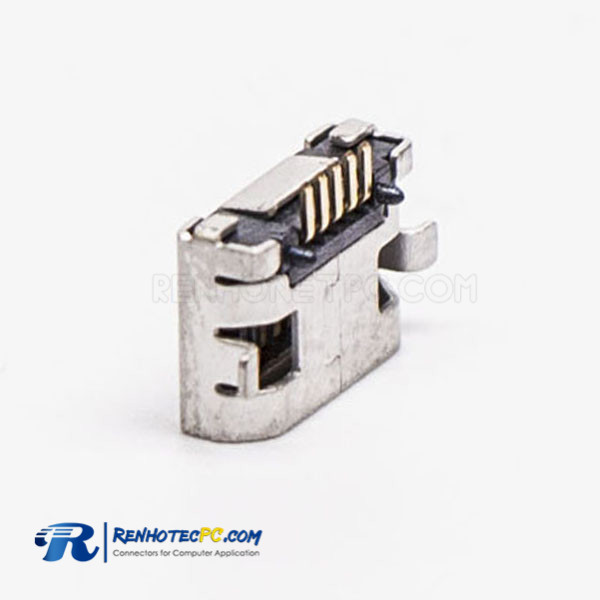

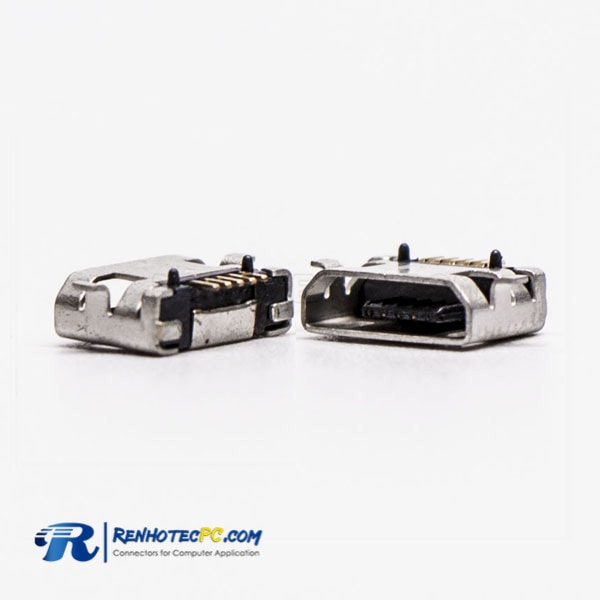

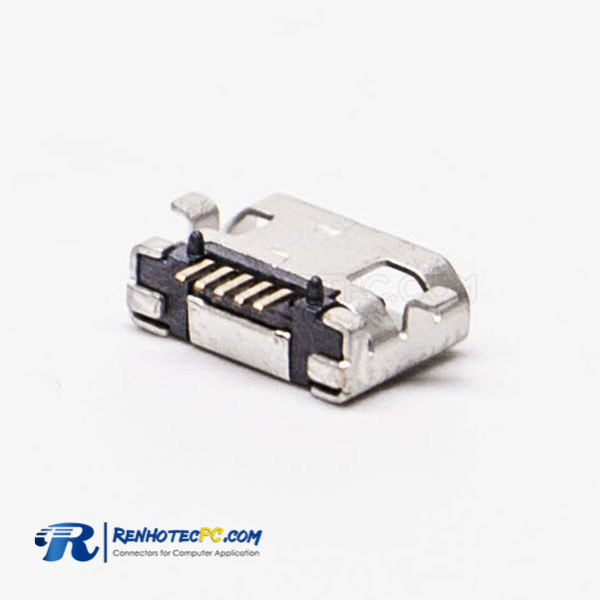

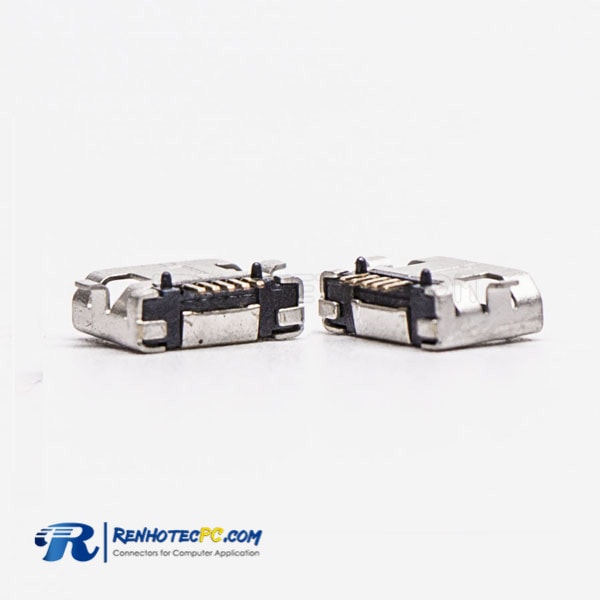

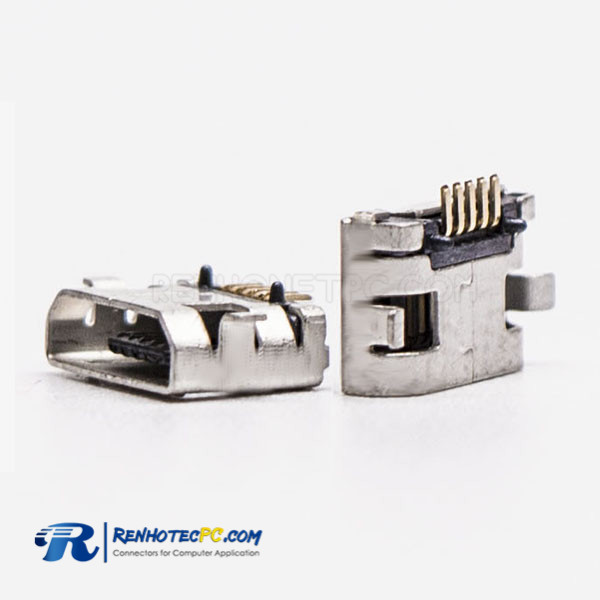

Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount

Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount
Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount Micro USB Female 5 Pin SMT Type 180 Degree for PCB Mount

Part NO.: KY-MICRO-05T45
Tags: Micro USB,Type B,5Pin,Straight/180째,Female/Jack,SMT,PCB Mount

Features:

  • More compact than Mini USB, meets environmental, health and safety requirements
  • Full metal shielding, Flexible application
  • Easy and Quick usage, Convenient recharging and communication
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A FREE Quote

Major Technical Characteristics
Volatage Rating 100V AC (rms)
Current Rating 1.0A MAX
Contact Resistange 10 milliohms max
Insulation Resistange 1000M ΩMin
Dielectric Withstanding Voltage 500 V DC/1min
Durability 10,000 cycles
Mating force 35N max
UNmating force 10N
Operating Temperature -55°C to +85°C
