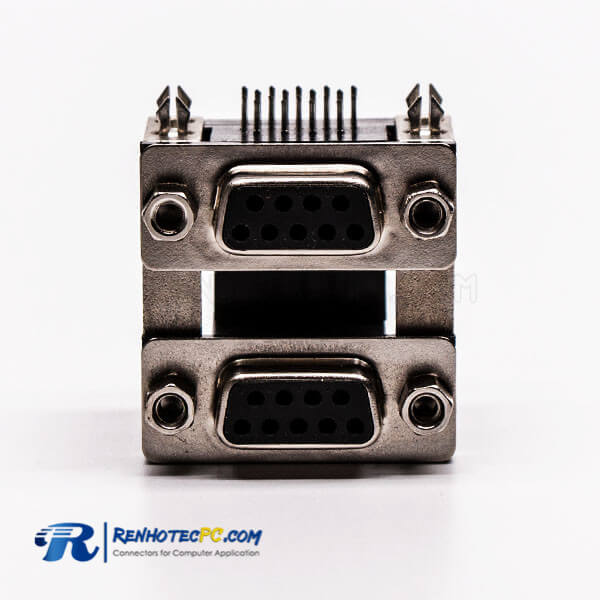

D Sub Connector Staking Female DIP CD81 Series for PCB Connector

D Sub Connector Staking Female DIP CD81 Series for PCB Connector
D Sub Connector Staking Female DIP CD81 Series for PCB Connector D Sub Connector Staking Female DIP CD81 Series for PCB Connector D Sub Connector Staking Female DIP CD81 Series for PCB Connector D Sub Connector Staking Female DIP CD81 Series for PCB Connector D Sub Connector Staking Female DIP CD81 Series for PCB Connector

Part NO.:RHT-681-1154
Tags: d sub connector staking female connector

Features:

  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards
  • Inserts are flame-retardant thermoplastic
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Voltage Rating 250V AC/ rms 50Hz
Withstanding Voltage 1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.
Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Operating Temperature -67°F (-55°C) to +257°F (125°C)
