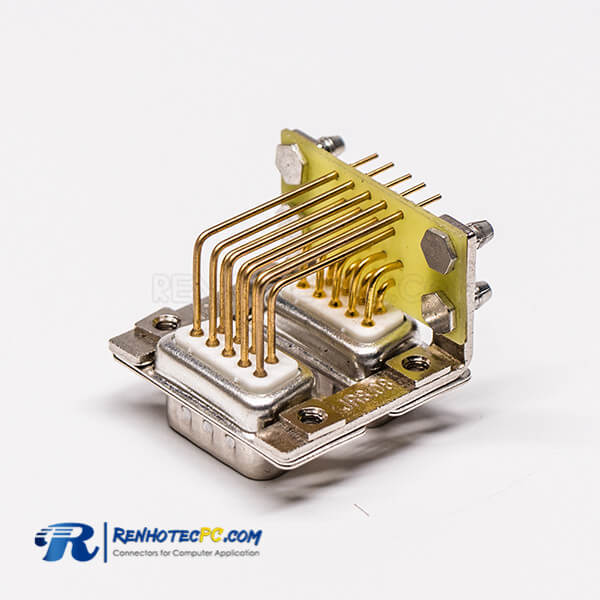

D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount

D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount
D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount D SUB 9 Pin Connector Staking Male Right Angled through Hole Staking Type for PCB Mount

Part NO.:RHT-681-1169
Tags: D-sub Connector,Right Angled/90°,Male/Plug,Stacked,Staking,Machined Pin,type,19.05,PCB Mount,through Hole

Features:

  • Precision turned contacts
  • D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Voltage Rating 300 V AC/rms 50Hz
Withstanding Voltage 1000V AC/ rms 50Hz for one minute
Insulation Resistance 5000MΩ
Contact Resistance 8.5mΩ max. DF: 5mΩ max
Operating Temperature D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)
