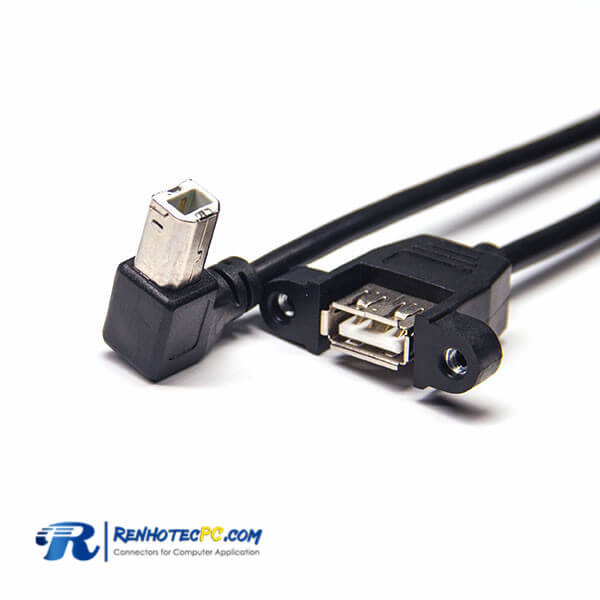

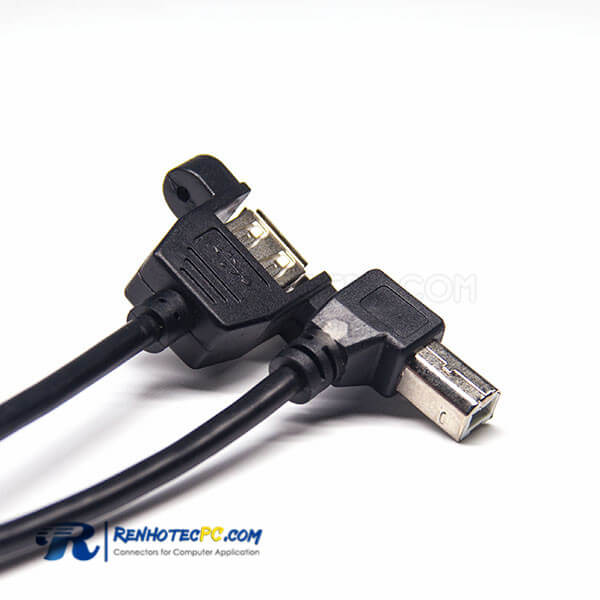

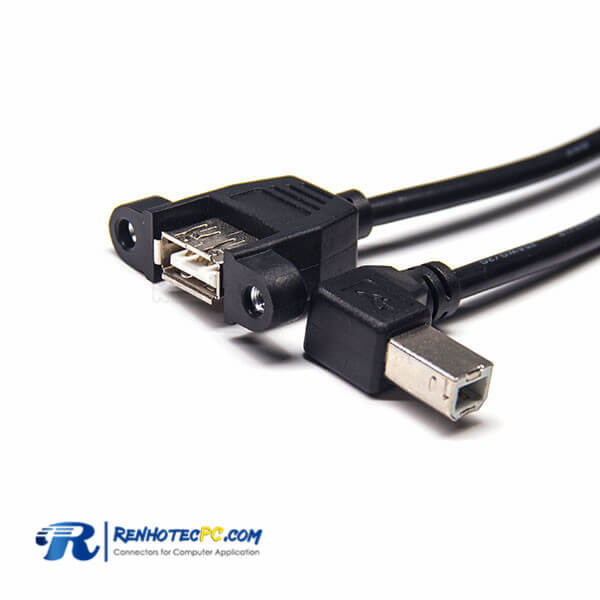

AB Type USB Cable Right Angle Type B Male to Type A Female
Part NO.:RHT-606-0123
Tags:USB2.0 Cable,Type A,Female,Straight,Type B,Male,Right Angled
Features:
- Fast charging cable and data transfer line
- 3A fast charging Android/iphone device data line
- Cable length 1m(can be customized),pure copper wire core,PVC jacket,OD 3.5mm,Die-casting,support 3A current
- 12 Months Quality Insurance
- Free sample available for quality test
- Can be Customized for unique material or performance requirement
Specification
Major Technical Characteristics |
|
Current rating | 3A continuous |
Insulation resistance | 500MΩ min. |
Dielectric withstanding voltage | 1500V min. |
Voltage rating | 1000V rms |
Mating force | 5N to 20N |
UNmating force | 8N to 20N |
Durability | 10,000 mating cycles |
Operating Temperature | -40°C~ + 120°C |
