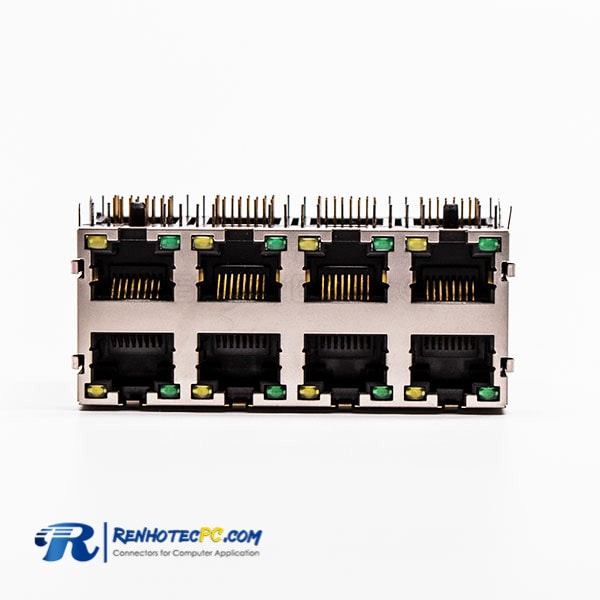

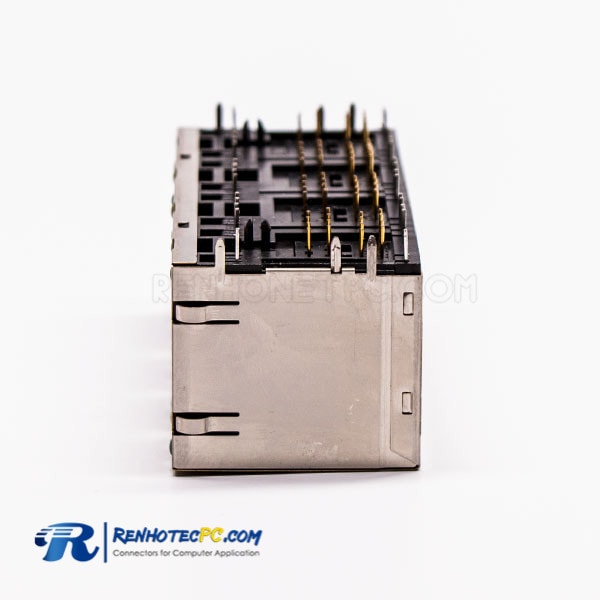

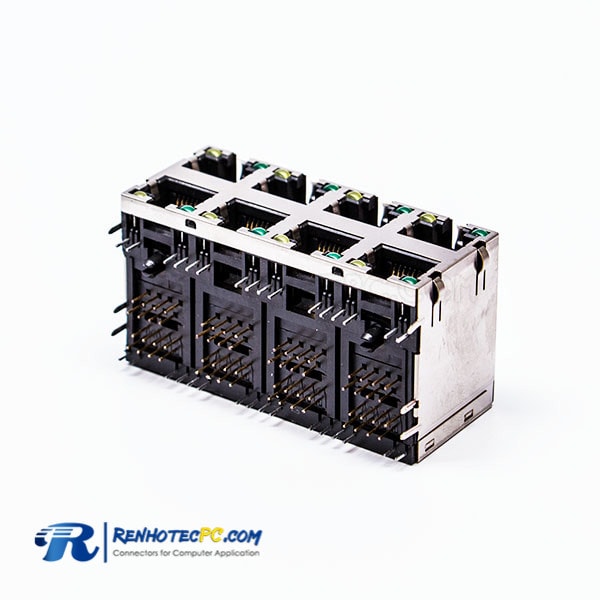

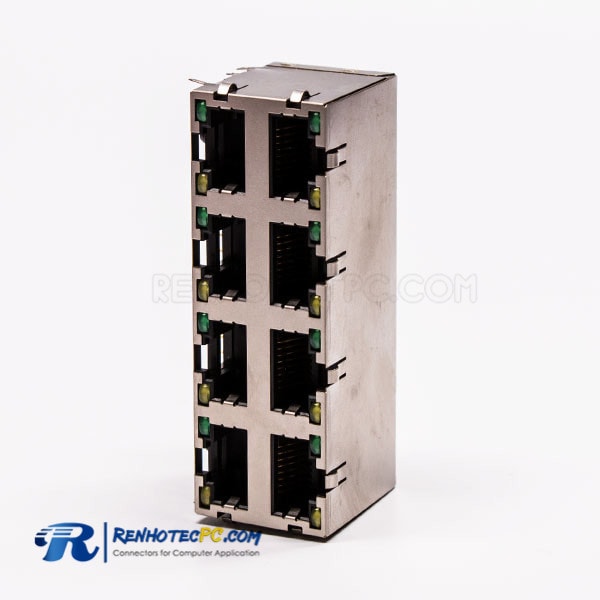

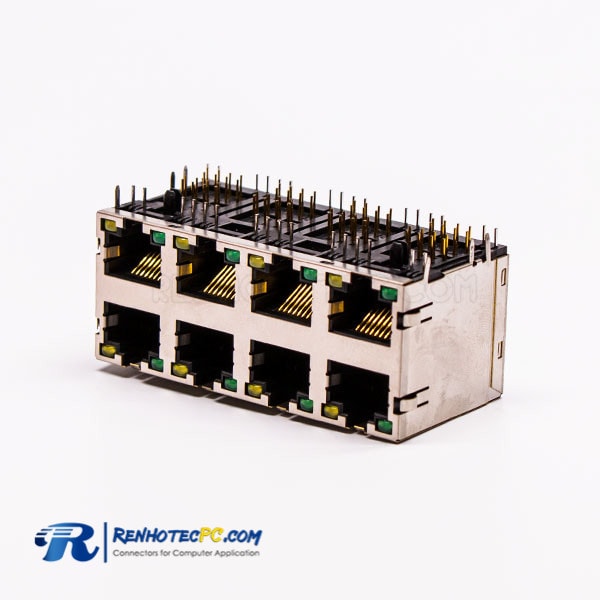

Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB

Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB
Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB Female R/A RJ45 8 Pin Connector 8 Port Gold Plated with Shield and LED for PCB

Part NO.: RHT-620-0755
Tags: RJ45,Female,PCB Mount,2*4,Double Row,8 Port,Right Angle/90°,With Shield,With LED

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
